Hall limit technology is widely used in many fields due to its advantages such as non-contact, long lifespan, and high reliability. As a key magnetic component in the Hall detection system, radial magnetized magnetic rings are commonly used. So, what is a radial magnetized magnetic ring for Hall limit application? What are its advantages?
The Hall limit radial magnetized magnetic ring refers to the alternating distribution of magnetic poles along the circumference of the magnetic ring. Common designs include 4-pole, 6-pole, 8-pole, 12-pole, 16-pole, 24-pole, and other multi-pole designs. When used in conjunction with a Hall sensor, the rotation of the magnetic ring generates regular magnetic field changes, allowing the Hall element to output stable pulse signals for position detection, speed detection, and electronic limit functions.
Compared to traditional mechanical limit switches, the Hall limit system can complete detection without contact, significantly improving the reliability and service life of the equipment.

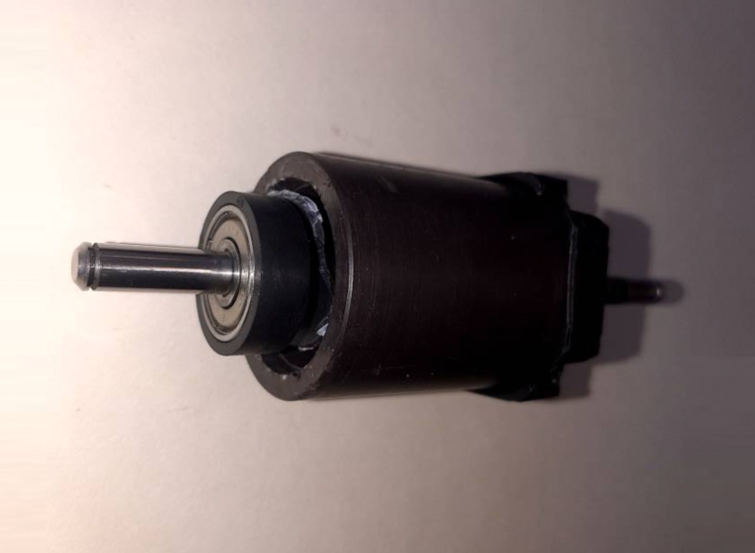

Applications of Radial Magnetic Rings
Why choose radial magnetized magnetic rings?
Firstly, it is easy to install. The magnetic ring can be directly fitted onto the motor shaft, reduction gearbox shaft, or transmission shaft, eliminating the need for complex mechanical triggering mechanisms and saving installation space.
Moreover, the detection distance is relatively stable. After radial magnetization, the magnetic field is mainly concentrated on the outer circumferential surface of the magnetic ring. Installing the Hall element on the side of the magnetic ring can obtain a stable signal, which is conducive to improving detection accuracy.
Furthermore, it is suitable for high-speed rotation. The radial magnetized magnetic ring can maintain stable magnetic field output even at higher speeds, making it less prone to mechanical vibration and malfunction.
In terms of magnet materials, the most commonly used is the ferrite series, such as sintered ferrite and injection molded ferrite. Of course, you can also choose materials such as injection molded neodymium iron boron and bonded neodymium iron boron, depending on your requirements for magnetism and cost.
Our company is a professional supplier of motor magnets, offering a wide range of axial and radial multi-pole ring magnets. If you are interested in obtaining free samples and quotes, please feel free to give us a call or send us an inquiry.
