Radial magnetization inner diameter 6mm magnetic ring is a type of annular permanent magnet that adopts radial magnetization method. The inner hole diameter of the magnetic ring is 6mm, and the magnetic field is distributed along the diameter direction of the magnetic ring. It can be processed into ordinary 2-pole, multipole such as 4-pole, 8-pole, 10 pole, 12 pole, etc. according to customer needs.
As for its features, it is compatible with 6mm shafts and offers a stable radial magnetic field, making it ideal for miniature rotational sensing and motor applications.
In terms of magnet materials, radially magnetised magnets with a 6 mm hole can be selected from sintered neodymium-iron-boron, sintered ferrite, bonded neodymium-iron-boron or injection-moulded nylon magnets, depending on application requirements. Among these, neodymium-iron-boron magnets have a high energy product and strong magnetic force, making them suitable for equipment with high output performance requirements, whilst ferrite magnets are characterised by their corrosion resistance and low cost, making them suitable for high-volume applications; injection-moulded magnets, on the other hand, are better suited to achieving multi-pole magnetisation and complex structures.

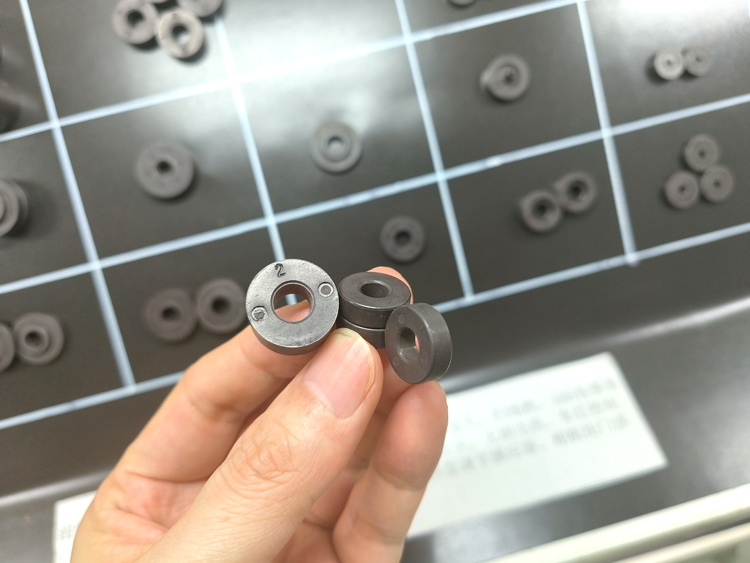

Radial injection-moulded magnetic rings
In terms of applications, radially magnetised magnetic rings with an inner diameter of 6 mm can be used in Hall sensors, encoders, motors, smart home appliances, power tools, medical equipment and automation equipment, amongst other fields.
Recommended dimensions:
D20 × d6 × 30 mm
D20 × d6 × 45 mm
Multipole 4 pole grey bonded cylinder magnets with hole 10x6x15mm
D11.4 × d6 × 27 mm / externally magnetised, 4-pole
D12.5 × d6 × 4 mm / internal copper sleeve / 2-pole
D15 × d6 × 4.9 mm / radial external 8-pole
D15 × 6 × 5 mm / radial external 8-pole
Hall plastic magnetic ferrite ring magnet 8 poles 15 x 6 x 4.9 mm
Radial hollow hole cylinder ferrite rotor magnets 20x6x45mm
If there are special dimensions, tolerance requirements, or magnetic performance requirements, our company can customize processing according to drawings or samples. Please feel free to consult.
