In various linear motor structures, permanent magnets are the core components for generating magnetic fields, and their shape and magnetization method directly affect the performance and structural design of the motor. According to different structural forms, common permanent magnets in linear motors are mainly block and parallelogram shape magnets, while in some special structures, axially magnetized ring magnets are also used.
Firstly, in flat-type linear motors, the most common shape of permanent magnet is block (rectangular/bar) magnet steel. This type of magnet steel has a simple structure and is easy to process. It can be regularly arranged on the magnetic track to form alternating N and S magnetic fields, which can generate electromagnetic force with the coil to achieve linear motion. Square magnet steel has the advantages of high assembly efficiency and relatively low cost, and is therefore widely used in automation equipment, CNC machine tools, precision motion platforms, and other fields.
Secondly, some linear motors adopt parallelogram-shaped magnets to optimize the magnetic field distribution. Compared to ordinary square magnets, the parallelogram structure can better fit the specific magnetic circuit design, resulting in a more uniform magnetic field distribution. At the same time, it also helps reduce magnetic flux leakage and improve the thrust density of the motor.

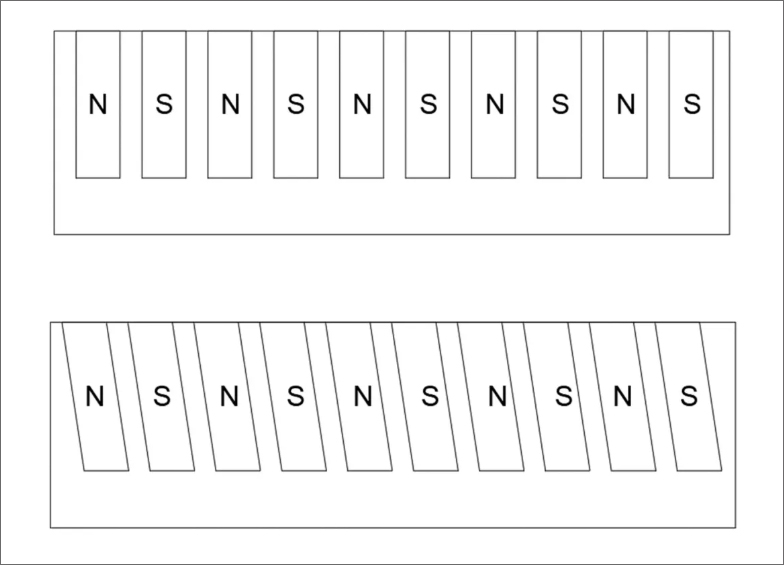

Common magnet shapes for linear motors
In addition, there are cylindrical linear motors, which typically utilize axially magnetized ring magnets arranged sequentially along the motor axis, forming an alternating magnetic pole structure. Due to the good match between the circular ring magnets and the cylindrical structure, the magnetic field is evenly distributed along the axis, giving these motors a distinct advantage in compact linear motor designs.
The above are several commonly used shapes of permanent magnets for linear motors. Proper selection of the shape of the permanent magnet can not only enhance the efficiency of the motor but also optimize its overall operational performance.
