Whether at home or abroad, N52 grade magnets (neodymium material) are very popular, many users and customers want to know how many gauss a N52 magnet, the following combination of xiaofu experience and some sample gauss data for you to introduce.
N52 grade is the high performance grade of neodymium magnets, the maximum magnetic energy product is about 52MGOe, the surface gauss value is usually about 1000-5500 gauss, depending on the shape and size, gaussmeter, and measurement method.

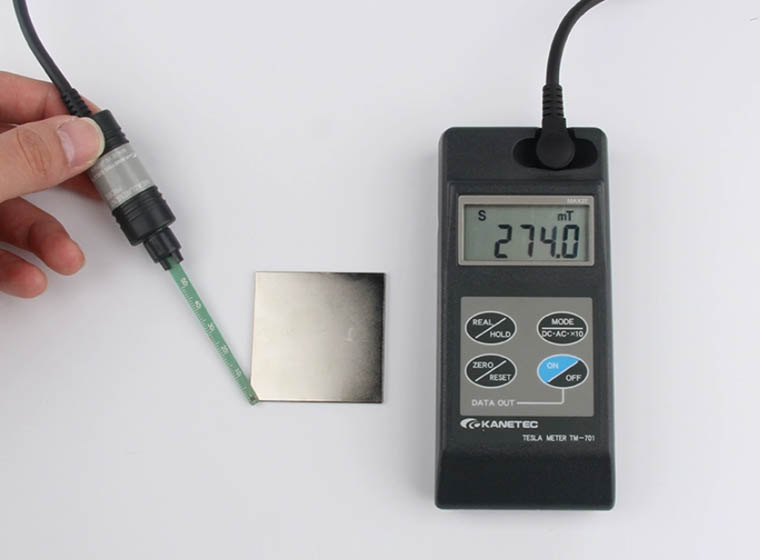

The image below shows the gauss measurement of the N52 grade square strong magnet 50x50x2mm edge.
There are different shapes of N52 neodymium magnet gauss data below, hope it will be helpful for you.
7x4.2mm axially magnetized circular magnet with a measured apparent magnetic strength of 4470 gauss.
2.9x5.6mm axially magnetized cylindrical rare earth magnets with a measured table magnetic strength of 3870 gauss.
10mm x 1.5mm flat round neodymium magnet n52 grade gauss about 1740 G.
10x3mm standard round neodymium magnet with gauss rating of about 3350G.
20x10mm round neodymium magnet surface magnetic field strength is about 5190 gauss.
40x10mm medium size round strong magnet with N52 performance actual gauss of 4710 G.
70x18mm larger N52 round magnet with a surface gauss of approximately 3830 gauss.
30mm x 9.5mm x 1.3mm Thin Ring N52 Magnet surface magnetism is approximately 1050 gauss.
1”square ndfeb magnet 25.4mm x 25.4mm x 12.7mm surface magnetism is about 4010 gauss.
10x10x8mm neodymium square magnet actual gauss is about 5010 G.
14x14x5mm square rare earth strong magnet surface gauss is about 4230 gauss.
50x50x2mm square neodymium magnet with gauss about 2740 G.
50x50x30mm strong square magnet with gauss up to 5830 G.
20x3x3mm bar magnet with a surface gauss of about 3730 G.
Radially magnetized 9.5x25.5mm cylindrical neodymium magnet with a surface gauss of approximately 4600G.
4x0.6x1.1mm eyelash magnet with a surface gauss of about 830 gauss.
12x3x4mm N52 block magnet with a surface gauss strength of about 4210 gauss.
60x20x10mm Powerful Block Magnet with a surface gauss strength of approximately 5040 gauss.
Although N52 magnets have super strong magnetic force and their surface gauss value far exceeds that of ordinary magnets, the gauss value is not the only criterion in practical use. The right size, shape, mounting method and safety distance are also critical.
