N52 Large Arc Sintered Neodymium Magnets Height 70mm

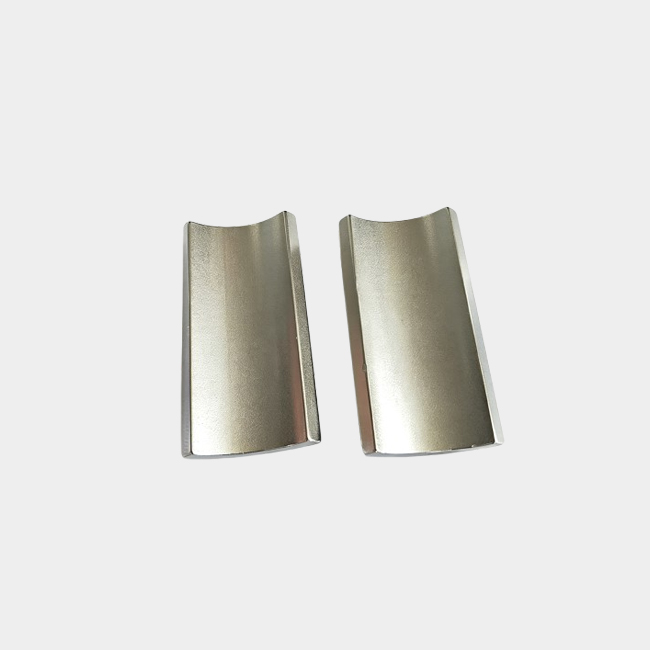

This product is a custom-made large sized arc shaped neodymium magnet with an outer radius of approximately 26 mm, an inner radius of approximately 20 mm and a curvature of 90°. It is commonly used in industrial machinery or large-scale equipment. When selecting an arc-shaped magnet, it is necessary to take into account magnetic force requirements, installation space and the operating environment. For example, applications requiring high magnetic force may necessitate a thicker magnet, whilst in scenarios where space is limited, priority should be given to ensuring the curvature and radius are appropriately matched.

Other large curved magnets: N40SH Large Arc Segment Magnet OD 120MM

Related technical articles;

How To Embed Arc Magnet on The Motor Rotor Outer Surface?

Influence of the size of arc magnets on motor performance

Dongguan Courage Magnetoelectric Technology Co., Ltd. is a Chinese magnet manufacturer specializing in the production of strong neodymium magnets, ceramic ferrite magnets, motor multipole magnets. We have cooperated with many customers for many years, mainly for the following reasons:

1, We are good at processing high performance, high precision, high difficulty magnet, especially in the field of DC motor magnet, have strong professional knowledge, experience.

2, We have a professional production, sales, design team, based on the industry for more than 14 years.

3, We have advanced magnet production and testing equipment, according to customer requirements to design, production of special requirements of magnet products,

4. The company's products have passed SGS, ROHS, REACH certification and a complete ISO9001 quality management system, specializing in providing high-quality permanent magnet products to customers in various countries.

5. Experience in serving Western, Asian and North American companies, we also have close ties with other regions, fedex or DHL can deliver,

6, Even if our customers do not know much about magnets, we will help and provide accurate product solutions.
