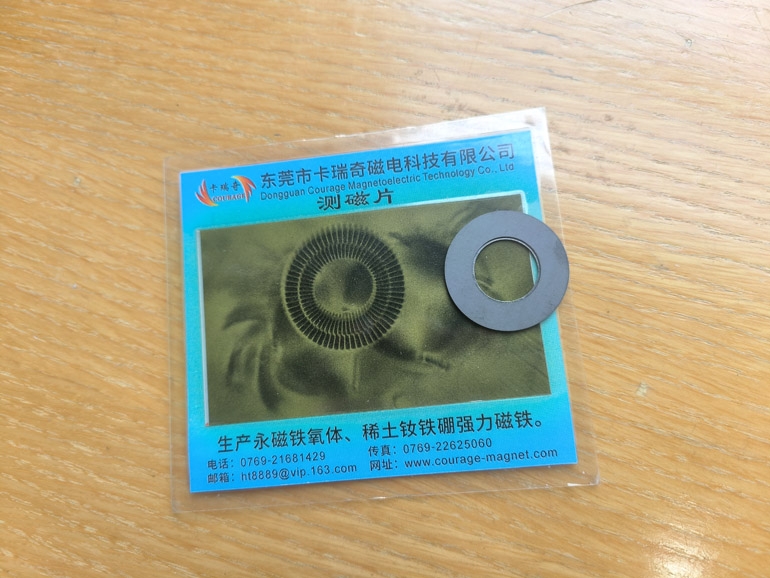

2 Track multipole 62 64 poles axial encoder disk 29x15x1.1mm

The product is a dedicated magnetic encoder disk for encoders. It is ring in shape, made of rubber ferrite material, and features a double-ring magnetization structure. It has 64 poles and 62 poles. The specifications are an outer diameter of 29mm, an inner diameter of 15mm, and a thickness of 1.1mm. The overall size is compact, making it suitable for micro and small-sized rotating detection systems with limited space. It can simultaneously output high-resolution position signals and auxiliary calibration signals, significantly enhancing the angle resolution and anti-interference performance of the encoder. It is particularly suitable for absolute or incremental magnetic encoder systems.

2 Track multipole 62 64 poles axial encoder disk 29x15x1.1mm
