16mm ndfeb countersunk pot magnet [pull wholesale custom]

Material:Neodymium magnet + iron case

Shape:Ring

Appearance:Silver

Grade:N35~N42, N45, N48, N50, N52, N55, etc

Coating:Nickel-copper-nickel

Tolerance:+/- 0.05mm

Packing:Carton or Pallets

Pull Force:About 6kg

Delivery Time:20-30 days

Place Of Origin:Dongguan, China

Working Temperature:80-230 ℃

Magnetizing Direction:Thickness direction

Surface Magnetic Strength:More than 3500 Gauss

  • Product Details
  • Why Choose Us
  • FAQs
  • Packing & Delivery

This product is a 16mm diameter sink hole pot magnet, also known as a suction cup magnet. It is composed of a strong magnet, an iron shell, and a rubber ring, and has the characteristics of small volume and high suction. In addition to the built-in magnet and external iron shell structure, its suction force also depends on the material, thickness, flatness, and friction of the adsorbed surface.


16mm strong sinking hole pot magnetic characteristics;

1. Strong magnetic force and compact size

2. The strong magnetic force is only concentrated on one side, with almost no magnetism on the other side

3. Magnetic force is equivalent to 5 times that of a magnet of the same volume

4. Can freely hold or move on iron metal surfaces

5. Not fragile, with an extended service life

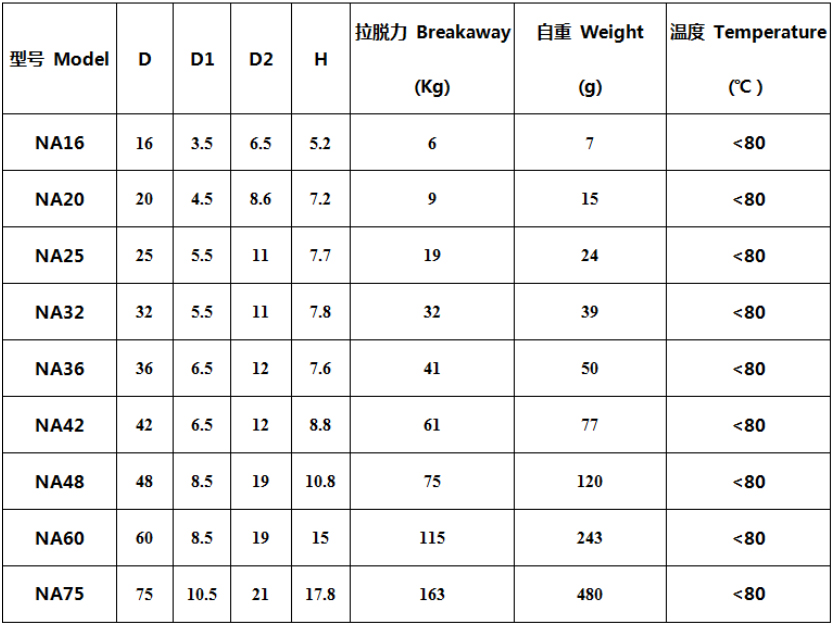

Neodymium countersunk pot magnet commonly used size specifications and pull;

Neodymium countersunk pot magnet commonly used size specifications and pull


Main application of 16mm neodymium sinking hole pot magnet;

Can be used for fixing doors, cabinets, door suckers, ceilings, signs, advertisements, lighting, hardware kitchenware, mechanical shipbuilding, deep water salvage, etc
